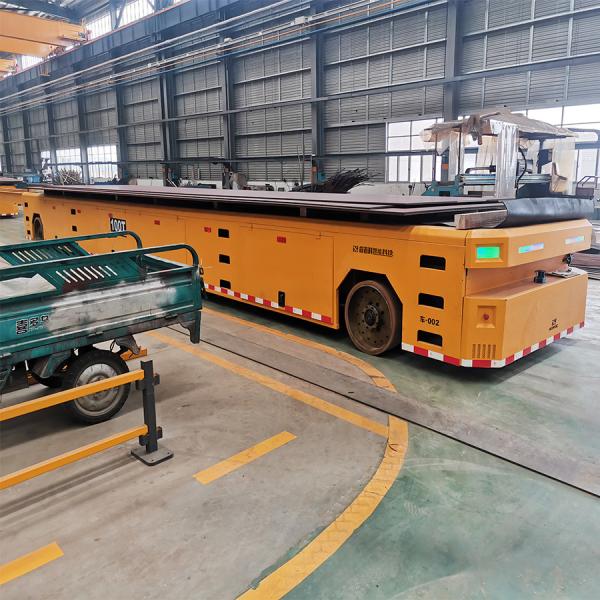

50 Tons Shipyard Transfer Vehicle
A shipyard transfer vehicle is a kind of large-capacity electric transporter designed for shipyard material transport. It is powered by a storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compared with others, It has no limited distance; Compared with others, it is simple operation and structure, But its main source powered is the battery, the maintenance-free battery is chosen to export due to its convenience. About this, it is popular in many foreign countries like South Africa, Germany, Turkey, etc. Remarkable has a professional team and utilizes more advanced techniques to make it.
Product Features
Heavy loading;
Durable;
Efficient;
Safety and environmental protection;
Save Cost;
Environmental;
Working Principle
Trackless transfer cart of Parameter
| Technical parameters for trackless electric transfer carts |
| Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| Structure of frame | steel plates welded, beam structure |
| Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| Ground requirement | cement floor | steel plate ground |
| Table size(mm) | 3000×
2000 | 3600×
2000 | 4000×
2200 | 4500×
2200 | 5000×
2200 | 5500×
2300 | 6000×
2300 | 10000×
3000 |
| Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| Ground clearance(mm) | 50 | 75 |
| Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| Turning type | turning while driving with no stop |
| Control method for turning | control button |
| Turning structure | mechanical |
| Wheel material | ZG55+hydropur ture |
| Running speed(m/min) | 0-15 | 0-12 |
| Brake principle | electric magnetic brake |
| Operation method | with wire or no wire |
| Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
| Battery maintenance | free of maintenance |
| Charger's installation | installed on cart | split-type |
The remarkable shipyard transporter vehicle is powered by a battery, and low voltage, cable reel. Its power is the battery or AC 380 V through the device which is installed on the bottom of the shipyard vehicle. The motor is controlled by the power through the AC or DC control system. Using this principle to operate the transporter start, stop, go forward, backward, and so on.
The power supply mode can be customized as your demands. Such as battery power, low voltage railway power, busbar power, etc
