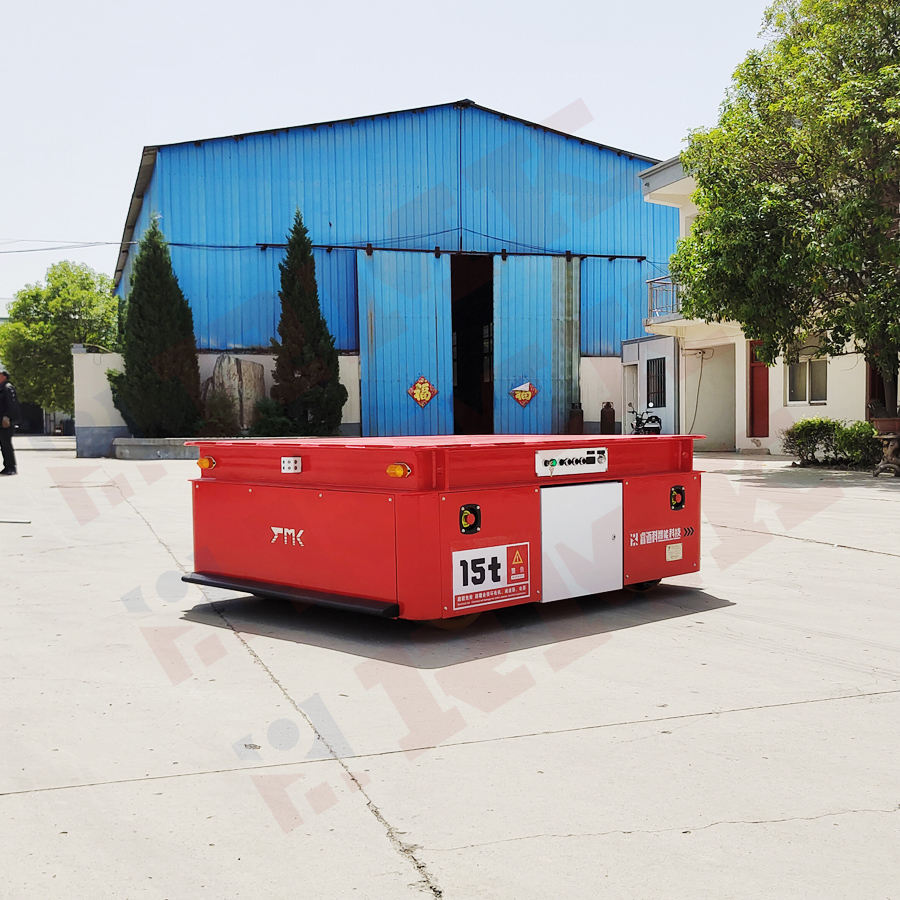

15 Tons Industrial Trackless Transfer Trolley Radio Remote Control Aluminium Coil
Trackless transfer cart RWP series
Trackless transfer cart uses large capacity battery pack, DC motor speed control drive technology, multi-wheel hydraulic steering technology and line control, remote control dual operation mode. Solid rubberized wheel runs directly on the ground, operated unrestricted by the site and the ground could not be damaged. Also, two-way driving and 360°in-situ rotation could be realized.
Applications:
aerospace, military, Machinery manufacturing, automotive industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port freight yards, steel plate distribution, steel metallurgy, mining and transportation, and other industries.
15 Tons Industrial Trackless Transfer Trolley Radio Remote Control Aluminium Coil
Remarkable heavy duty platform carts are utilised to transfer large and bulky injection molds within production plants, in both medium and large sized companies. Especially in the automobile industry and mechanical equipment industry. These companies have numerous molds which on a daily basis must be transferred within the factory from a storage location to the molding presses, to maintenance rooms and so on. So, the most effective way is to use Battery power platform trolleys, Remarkable is a professional heavy duty platform carts manufacturer to improve their operations.
| Technical parameters for electric transfer carts |
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure |
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground |
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 |
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop |
| 13 | control method for turning | control button |
| 14 | turning structure | mechanical |
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance |
| 23 | charger's installation | installed on cart | split-type |
| 24 | charger function | automatic charging |
| 25 | radar control | 3-0.3m, automatic stop for obstacles |
| 26 | warning equipment | sound and light |
| 27 | other functions | turning light, night light and power display |
