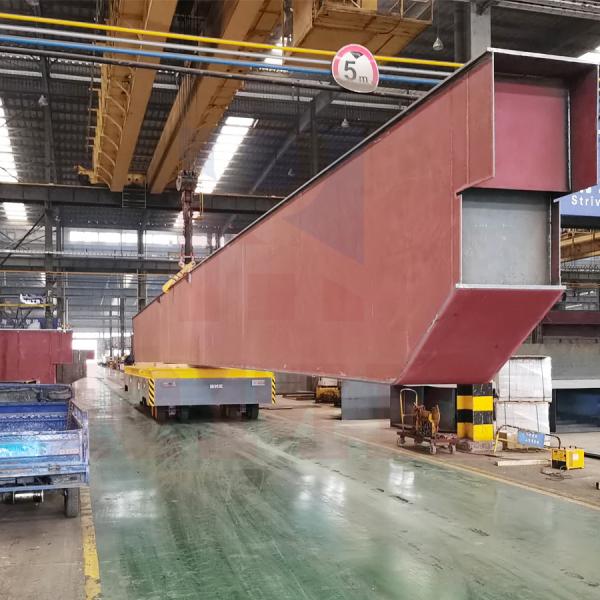

Steel Plant Material Handling Trolley
Trackless transfer car is designed to transport heavy goods or equipment from one place of the factory to another. It can be used indoors or outdoors. Fields include metallurgy, foundry, new plant construction and shipbuilding. We can produce electric flat cars of different sizes according to different needs of different customers.
We provide solutions of different styles and loads under 100 tons, we can provide you with the solutions you need, and each style can be designed for your specific application.
Advantages of trackless transfer car:
The trackless transfer car can be used in many occasions, such as explosive, high temperature, ferry, etc.
DC motor, smooth start, large starting torque, small impact on reducer, low voltage, long life.
This kind of trackless transfer car is battery-powered, so it can travel freely without restrictions after it is fully charged. The service life of the car can be as long as 15 years. The battery-powered trackless transport trolley is suitable for various occasions, such as industries (steel mills, steel products such as steel structures, steel pipes, billets, ladles and coils) are transferred from one location to another. One location); Paper roll factory: transfer paper roll painting workshop: transfer the workpiece to the painting room) other industries: shipbuilding, quarry, warehouse, etc.
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground |
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 |
| wheels base(mm) | 1500 | 1700 | 1800 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-20 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
