Explosion Proof Two Car Linkage Special Track Transfer Cart For Spray Booth

Name: Explosion Proof Two Car Linkage Special Track Transfer Cart For Spray Booth
Brand: Remarkable
Price: 1 USD

Quality Explosion Proof Two Car Linkage Special Track Transfer Cart For Spray Booth wholesale

Brand Name : Remarkable

Model Number : KPX/KPD/KPJ

Certification : CE, ISO

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600

Delivery Time : 30-45 work days

Packaging Details : 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.

Power supply : Battery/Rail/Cable

Load : 1-1000 tons

Ground type : P8/P24

Operation method : Wireless remote control & Hand operate pendant

Traveling speed（m/min） : 0-25 (Stepless speed regulation)

Other function : Exquisite Drive Module Design, Less parts and Easy maintenance

Product name : Explosion-Proof Two Car Linkage Special Track Transfer Cart

table size : Roller/Customized

Feature : Explosion-Proof , Two Car Linkage ,Special rail Transfer Cart

Material : Carbon Steel

Contact Now

Explosion-Proof Two Car Linkage Special Track Transfer Cart For Pray Booth

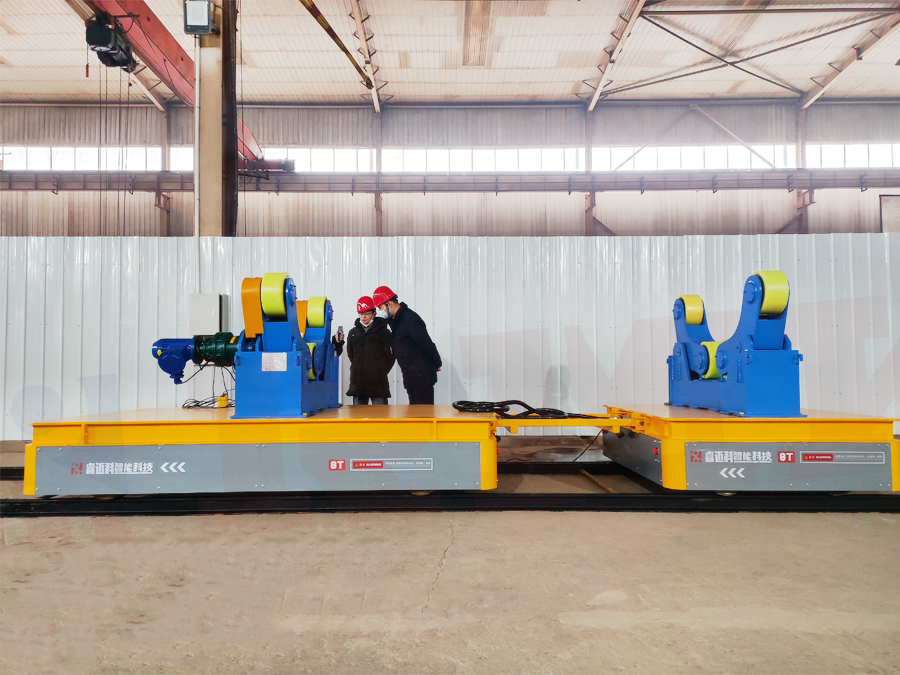

^{The special rail transfer cart designed and manufactured by Remarkable is used in explosion-proof environments and is used in harsh production environments such as paint booths, metallurgy, and special equipment. The rail transfer trolley is powered by a drag chain cable. The cart is two 8-ton rail cars with table sizes of 3000x1800x500 and 1500 × one thousand and eight hundred × 500, one large and one small. The two vehicles can be used alone or in linkage. Two selection modes of "single-vehicle status" or "linkage status" are set on the two vehicles, which can be selected under different use conditions. When two vehicles are selected for linkage, linkage (connecting line) can be used to connect the two vehicles, and then the two vehicles can complete the handling task at the same time.}

^{At the same time, the explosion-proof special track transfer cart designed by Remarkable adds a roller frame device. The most special thing is that the roller frame is a removable mode, which can be installed when customers need it and removed when not needed. In the design, we adopt the overall module mode, which is easy to install, disassemble and maintain, and is very convenient for customers.}

^{Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its explosion-proof special rail transfer cart Worldwide!}

Explosion Proof Two Car Linkage Special Track Transfer Cart For Spray Booth

Technical parameters for Battery powered electric transfer carts KPX series
Model		KPX-2t	KPX-5t	KPX-10t	KPX-20t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-150t
Rated Load(t)		2	5	10	20	25	30	40	50	150
Table Size(mm)	Length	2000	3500	3600	4000	4500	4500	5000	5500	10000
	Width	1500	2000	2000	2200	2200	2200	2500	2500	3000
	Height	450	500	500	550	600	600	650	650	1200
Wheel Base(mm)		1200	2500	2600	2800	3200	3200	3800	4200	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Ø270	Ø300	Ø300	Ø350	Ø400	Ø400	Ø500	Ø500	Ø600
Wheel Quantity		4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	75
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		1	1.2	1.6	2.2	3	3.5	4	5	15
Battery Capacity (Ah)		180	180	180	180	250	250	300	330	600
Battery Voltage(V)		24	36	48	48	48	48	48	48	72
Running Time When Full Load		4.32	5.4	4.8	4	4	3.5	3.6	3.3	2.9
Running Distance for One Charge (Km)		6.5	8.1	7.2	4.8	4.8	4.2	4.3	4	3.2
Max Wheel Load (KN)		14.4	25.8	42.6	77.7	94.5	110.4	142.8	174	266
Reference Weight(t)		2.8	3.6	4.2	5.9	6.5	6.8	7.6	8	27
Recommended Rail Model		P15	P18	P18	P24	P38	P38	P43	P43	QU100
1. Load capacity, table size, and rail gauge can be customized; 2. Options: Remote radio control (imported or made in china); 3. Automatic stop when detecting obstacle or person, limit switches (to limit travel); 4. Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery); 5. Motor (DC motor with brush and DC motor brushless); 6. Electrical parts (imported or made in China).

Features of explosion-proof special rail transport carts:

1. It is used in the high-temperature explosion-proof special environment

2. It can be operated by single-vehicle or multi-vehicle linkage, and the operation is simple

3. A removable roller carrier device is installed to meet different handling needs

4. The power supply mode of the streamer is stable, safe, and reliable

5. It is applicable to various industrial production environments, especially in painting, metallurgy, military industry, and other fields

Explosion Proof Two Car Linkage Special Track Transfer Cart For Spray Booth
