Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Henan Remarkable Intelligent Technology Co., Ltd.
Contact Now

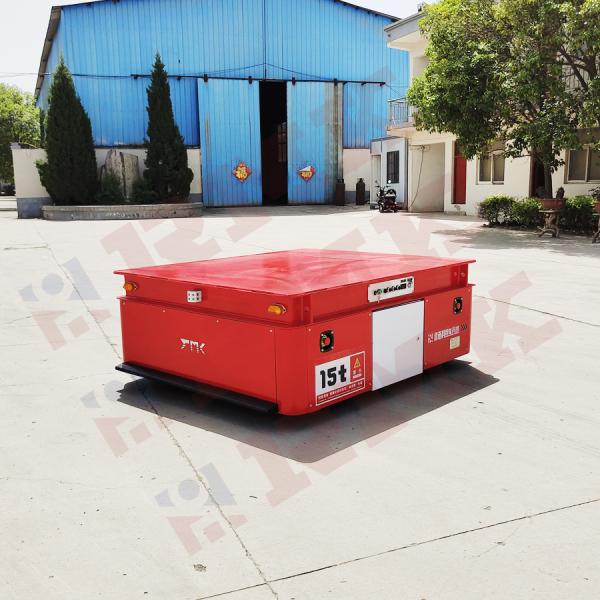

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Brand Name : Remarkable

Model Number : RWP, AGV, KPX

Certification : CE SGS ISO

Place of Origin : Henan, China

MOQ : 1sets

Price : Price negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600/years

Delivery Time : 40-45 work days

Packaging Details : 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.

Product Name : Die Transfer Carts For The Automotive Industry

Type : trackless transfer cart

Power Supply : Battery

Load Capacity : 1-500 tons/Customized

key word : Epoxy Flooring Trackless Transfer Cart, 15T Trackless Transfer Cart, Battery Operated Trackless Transfer Cart

Running Distance : Unlimited

Operation Type : Remote control+ Hand Pendant

Warranty : 18 months

Advantage : Flexible,turnning Free, Omnidirectional,automatic

Application : Industial Field,industrial Valves Handling, Factory Bay Movement

Contact Now


Die Transfer Carts For The Automotive Industry

Remarkable provides heavy-duty material transport technologies, Supplying heavy-duty industrial carts, often called die transfer carts, to auto parts manufacturers. maximizing productivity, improving factory logistics, eliminating unsafe procedures, implementing highly reliable technologies, and freeing up man-hours.

Remarkable heavy-duty platform carts are utilized to transfer large and bulky injection molds within production plants, in both medium and large-sized companies. Especially in the automobile industry and mechanical equipment industry. These companies have numerous molds which on a daily basis must be transferred within the factory from a storage location to the molding presses, to maintenance rooms, and so on. So, the most effective way is to use Battery power platform trolleys, Remarkable is a professional heavy duty platform carts manufacturer to improve their operations.

Such as auto parts manufacturers, mechanical equipment manufacturers, electrical equipment manufacturers, and other large companies, The large component parts are manufactured by injection molding using large molds which can weigh close to 100 tons. To maximize production efficiency requires a strong technical competence but also the dynamic handling of all development and production steps using specialized heavy materials handling equipment.

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Technical parameters for trackless electric transfer carts
Rated load(t) 5 10 15 20 30 40 50 150
Impacted rated loa(t) 7.5 15 22.5 30 45 60 75 225
Structure of frame steel plates welded, beam structure
Max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
Ground requirement cement floor steel plate ground
Table size(mm) 3000×
2000
3600×
2000
4000×
2200
4500×
2200
5000×
2200
5500×
2300
6000×
2300
10000×
3000
Height of the whole cart(mm) 450 530 600 600 650 700 700 1200
Ground clearanc(mm) 50 75
Turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
Turning type turning while driving with no stop
Control method for turning control button
Turning structure mechanical
Wheel material ZG55+hydropur ture
Running speed(m/min) 0-15 0-12
Brake principle electric magnetic brake
Operation method with wire or no wire
Battery model D-250x24 D-33x24 D-400x24 D-440x24 D-250x36 D-330x36 D-440x36 D-600x36
Battery maintenance free of maintenance
Charger's installation installed on cart split-type

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Remarkable was to design and build a die transfer cart, or more specifically, a self-propelled OMNI-directional heavy-duty platform cart to manage the movement of the molds within the plant. The advantage of this is safety, speed up mold transportation within the plant and improve factory productivity, Optimise the use of space in the mold storage area. We can design roller carriers, pallets, lifting devices according to the needs of customers and the characteristics of transport materials, and cooperate with the transfer vehicle.

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded

Automotive Industry Die Transfer Carts Trackless Steel Plates Welded
