Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Name: Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Brand: Remarkable
Price: 1 USD

Quality Steel Coil Motorized Transfer Trolley Steerable 30 Tons wholesale

Brand Name : Remarkable

Model Number : RWP-30T

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 300 sets per year

Delivery Time : 30-45 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

Application : Industry metallurgy, Material handling/steel coil/industrial

Load capacity : 30 Tons

Running speed : 0-20m/min

Size : Customized Size

Power source : battery

Safety features : Warning alarm and End stop, end stop, Warning alarm

Control model : wireless remote control

Safety facilities : warning light, E-stop

Steer mode : Hydraulic steering

Contact Now

^{Steerable 30 Tons Steel Coil Using Motorized Transfer Trolley}

^{Henan Remarkable 30 Tons Steel Coil Using Motorized Transfer Trolley Is A Wheeled Handling Equipment That Can Be Steered At Will By Manual Control. The Power Supply Method Is Battery Power Supply, And The Driving Wheel And Bearing Wheel Can Be Made Of High-Strength Polyurethane Rubber Solid Tires Or Pneumatic Tires. Restricted By Space And Ground, The Walking Direction And Route Can Be Changed At Any Time, Which Is Very Suitable For Occasions Where The Running Route Is Not Fixed.}

^{Product Range:}

^{Our Company Is A Professional Manufacturer Of Motorized Transfer Trolley In China. Our Mtotorized Transfer Cars Run On The Rail. They Can Transport The Heavy Cargo Or Heavy Equipment With 1-100 Tons. They Are Suitable For The Transfer Between The Workshops Or Warehouses In The Factory.}

^{30 Tons Steel Coil Using Motorized Transfer Trolley Is Designed For Transporting Heavy Duty Cargoes Or Equipment From One Place To Another Place. It Can Be Used Indoor Or Outdoor. The Fields Include Metallurgy, Foundry, New Factory Construction And Shipbuilding And So On. With Different Styles And Standard Capacities Up To 100 Tons, We Have The Solution You Need And Each Style Can Be Designed For Your Specific Application.}

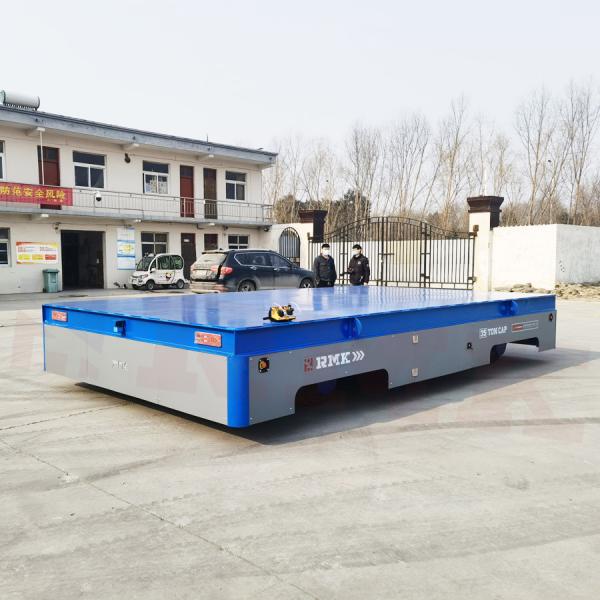

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Technical parameters for trackless electric transfer carts
rated load(t)	5	10	15	20	30	40	50
impacted rated load(t)	7.5	15	22.5	30	45	60	75
structure of frame	steel plates welded, beam structure
max. wheel load(t)	2.8	4.3	4.8	5.6	7.7	10	12
ground requirement	cement floor					steel plate ground
ground requirement	cement floor					steel plate ground
table size(mm)	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000×2300
height of the whole cart(mm)	450	530	600	600	650	700	700
ground clearance(mm)	50
wheels base(mm)	1500		1700			1800
axles distance(mm)	2500	3100	3400	3900	4300	4800	5200
turning radius(mm)	2501	3101	3401	3901	4301	4801	5201
turning type	turning while driving with no stop
control method for turning	control button
turning structure	mechanical
motor power(Kw)	3.5	5	6	7	10	12	15
wheel diameter(mm)	300 x 4	350 x 4		400 x 4	400 x 6	500 x 6
wheel material	ZG55+hydropur ture
running speed(m/min)	0-20
brake principle	electric magnetic brake
operation method	with wire or no wire
battery maintenance	free of maintenance
charger's installation	installed on cart				split-type
radar control	3-0.3m, automatic stop for obstacles
warning equipment	sound and light
other functions	turning light, night light and power display

Steel Coil Motorized Transfer Trolley Steerable 30 Tons
