PLC Controlled Motorized Handling Vehicle
Remarkable's motorized handling vehicle, also known as cross flat cart, transfer cart, transfer trolley, electric transport cart, have advantages as simple structure, easy operation and maintenance, large load capacity, and so on, with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across. The rail transfer carts and trackless transfer trolley are suitable for various industries, steel mill and factory, paper roll plant, painting room, shipbuilding, new factory building project, machine processing line, heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.
For horizontal load transfers of a wide range of materials, Remarkable has the heavy-duty, high-quality Transfer Cart solution you need. Motorized Handling Vehicles are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities of up to 500 tons, we have the solution you need and each style can be designed for your specific application.
Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its PLC Controlled Motorized Handling Vehicle Worldwide!
| Technical parameters for trackless electric transfer carts |
| Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| Structure of frame | steel plates welded, beam structure |
| Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| Ground requirement | cement floor | steel plate ground |
| Table size(mm) | 3000×
2000 | 3600×
2000 | 4000×
2200 | 4500×
2200 | 5000×
2200 | 5500×
2300 | 6000×
2300 | 10000×
3000 |
| Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| Ground clearance(mm) | 50 | 75 |
| Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| Turning type | turning while driving with no stop |
| Control method for turning | control button |
| Turning structure | mechanical |
| Wheel material | ZG55+hydropur ture |
| Running speed(m/min) | 0-15 | 0-12 |
| Brake principle | electric magnetic brake |
| Operation method | with wire or no wire |
| Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
| Battery maintenance | free of maintenance |
| Charger's installation | installed on cart | split-type |
Power Supply Mode of Motorized Handling Vehicle
The motorized material handling equipment manufactured by us can be designed with different power supply modes, which include storage batteries, cable, conductive rails, and so on. According to customers' different application environments, we would recommend the best suitable transfer solution with different power supply modes:
Storage Battery Powered Transfer carts: This kind of motorized transfer cart powered by a battery is suitable for long-running distance, low using frequency, "S" "L" and curved tracks, anti-explosion, and ferry occasions.
Cable reel powered transfer cart on rails: This kind of electric transfer Vehicle powered by cable is most used on occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind of material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy-duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by a battery that won't be affected by the trailing cable during running in small or limited space.
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What are the trip time and frequency? (# of Trips per, Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight-line travel, etc)
What is the distance to travel?
Other relevant information or using conditions.
Product Tags:
|
|

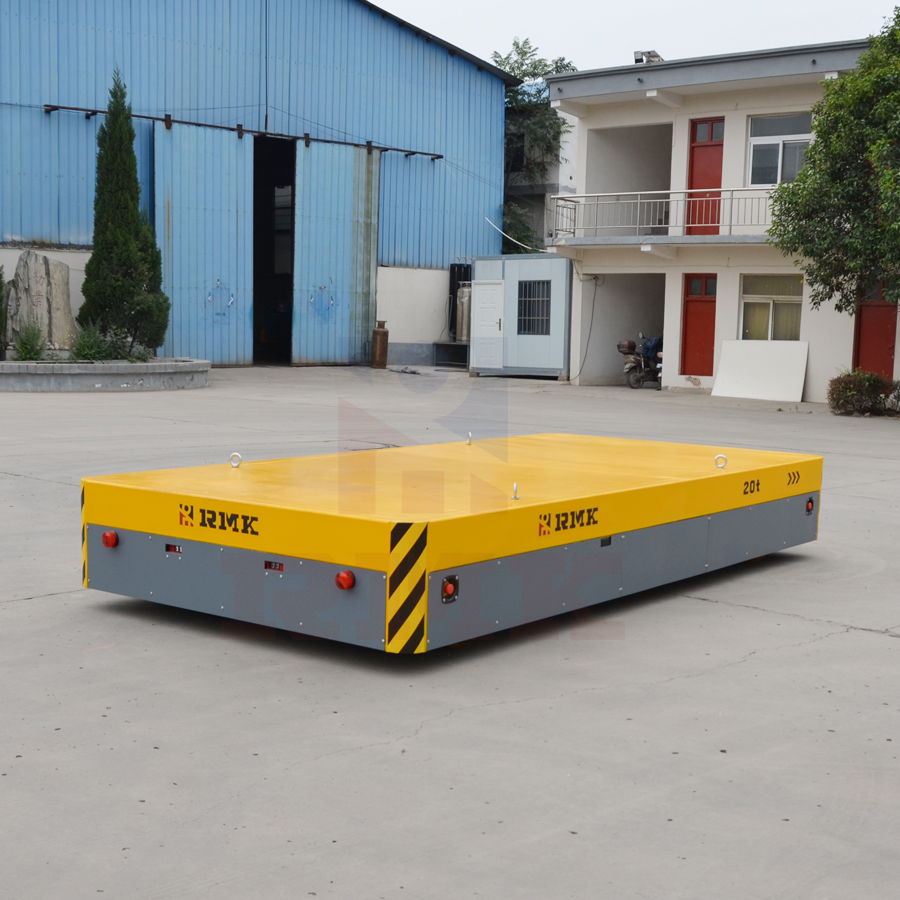

PLC Controlled Motorized Handling Vehicle Images
|
